MIL-DTL-82020 Switches And Frogs, Track, Cast Manganese Steel, For Portal CranesThis document covers special cast manganese steel track fittings for portal crane tracks.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19


MIL-DTL-82020C(YD)

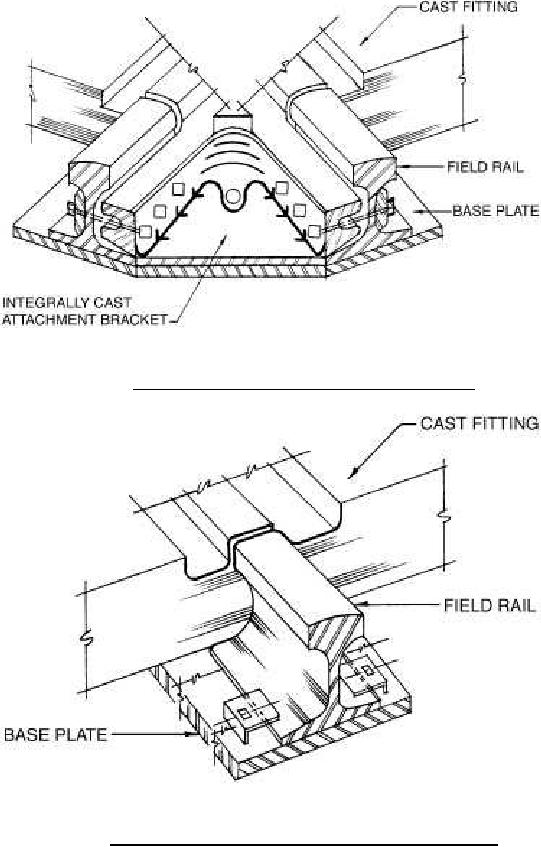

Figure 4. Fitting with Integrally Cast Attachment Bracket.
Figure 5. Fitting without Stub Rail, Field Rail Attached by Clips.
15
